Model
48V150Ah Golf cart LiFePO4 Battery
Electrical Specifications
Nominal Voltage 48V
Nominal Capacity 150Ah
Parallel Connection Max. 4units
Serial ConnectionNo
BMS 16S150A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication RS485, CAN, LCD , Active balancing module
Cycle Life 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 57.6±0.8V
Standard Current 30A
Fast Current 75A
Discharge Specifications
Standard Current 30A
Max. Con. Current 150A
Peak Current 400A (300ms)
Cut-off Voltage 40V
Mechanical Specifications
Dimensions (mm) 620×320×233mm
Approx Weight(KG) 62
Terminal Type M8
Case Color/material Black Metal case
IP Rating IP65
Cell Type Cylinder LiFePO4 cell
Temperature Specifications
Charge Temp 0°C to 55°C （32°F to 131°F）
Discharge Temp -20°C to 60°C （-4°F to 140°F）
Storage Temp -20°C to 45°C （-4°F to 113°F）
Product advantages:
Higher qualified cylindrical cell:
UL1642, IEC62619, IEC62133 listed with Cycle life more than 3000times and excellent consistency
Stronger BMS:
Equip with 150A BMS, can deliver more power during device's uphill operation, smoother your task.
More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
Higher energy density with less weight:
Based on smaller size and cell holder, our capacity 150Ah is 30% higher than others without much higher weight.

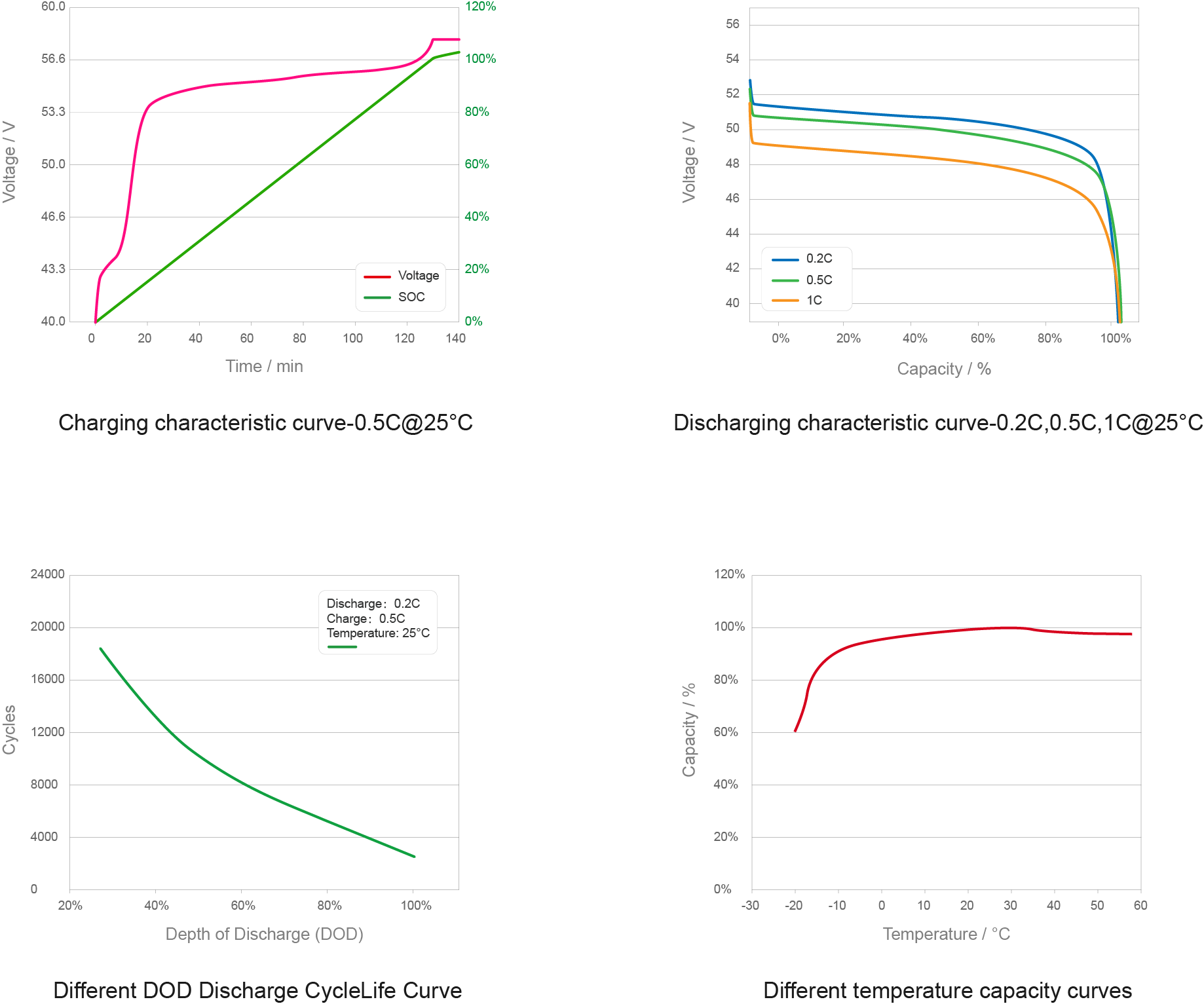

Characteristics Curve:

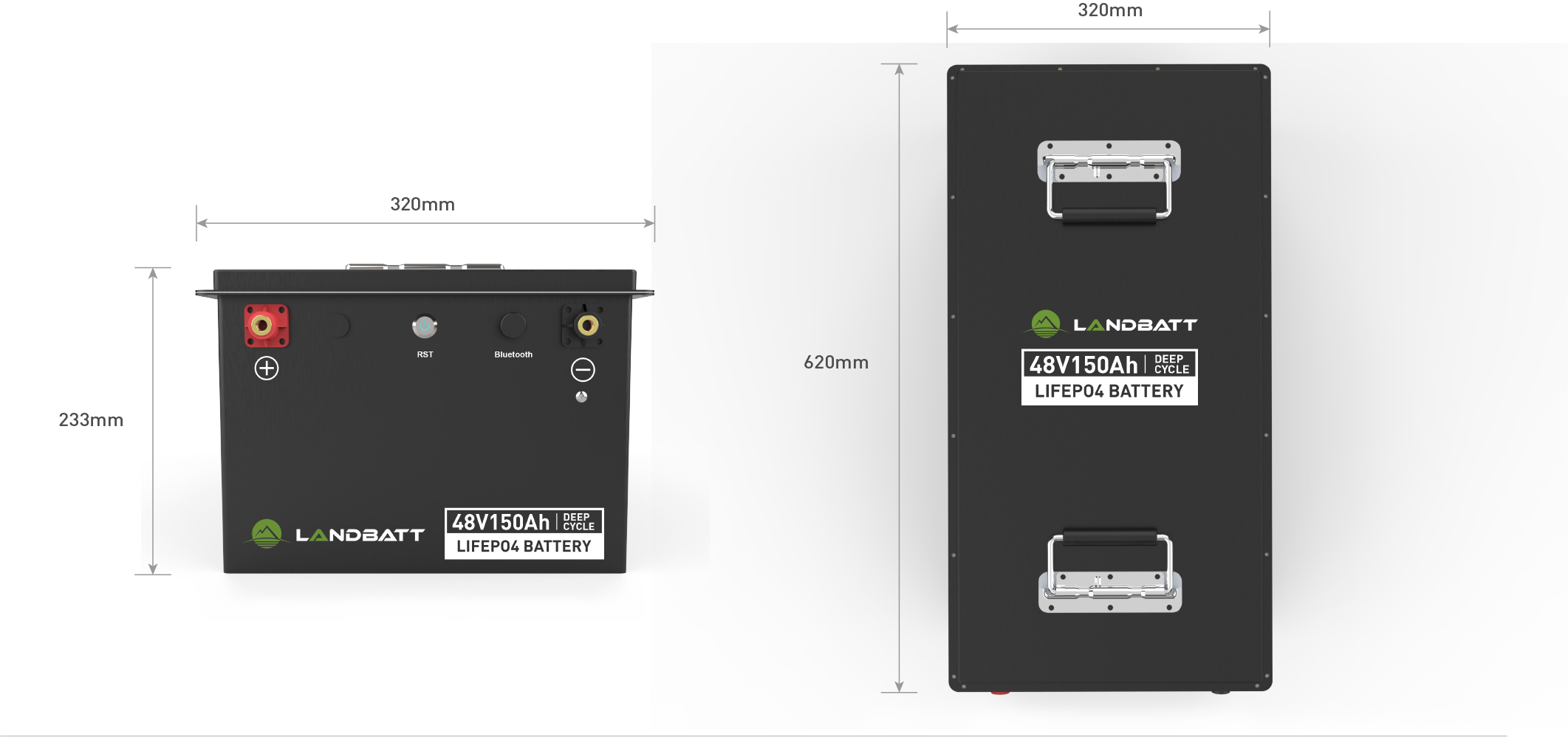

Dimensions
