Model
48V105Ah Golf cart LiFePO4 Battery
Electrical Specifications
Nominal Voltage 51.2V
Nominal Capacity 105Ah
Parallel Connection Max. 4units
Serial ConnectionNo
BMS 16S200A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication RS485, CAN, LCD , Active balancing module
Cycle Life 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 57.6±0.8V
Standard Current 21A
Fast Current 52.5A
Discharge Specifications
Standard Current 21A
Max. Con. Current 105A
Peak Current 900A (100ms)
Cut-off Voltage 40V
Mechanical Specifications
Dimensions (mm) 404×324×250mm
Approx Weight(KG) 45
Terminal Type M8
Case Color/material Black Metal case
IP Rating IP65
Cell Type 3.2V105Ah Prismatic cell
Temperature Specifications
Charge Temp 0°C to 55°C （32°F to 131°F）
Discharge Temp -20°C to 60°C （-4°F to 140°F）
Storage Temp -20°C to 45°C （-4°F to 113°F）
Product advantages:
Higher qualified prismatic cell:
UL1642, UL2580, UL9540, IEC62619 certificated prismatic cell with high consistency.
Stronger BMS:
Equip with 200A BMS, delivering more power when golf cart running uphill.
Active balancing module:
The active balancing module could keep the battery always be in balance state and ensure long cycle life.
High waterproof:
We make waterproof treatment on the top cover and handle to ensure the battery won't affected by rainy weather and humid environment.
More stable and firm internal structure:
Each model is equiped with metal fixing frame or cell holder to strongly fix the cell and lessen the vibration to cell caused by driving on an uneven road.
Higher energy density with less weight:
The 3.2V105Ah prismatic cell which be used in these two model is with energy density 169wh/kg, about 15% higher than others, which bring less weight.

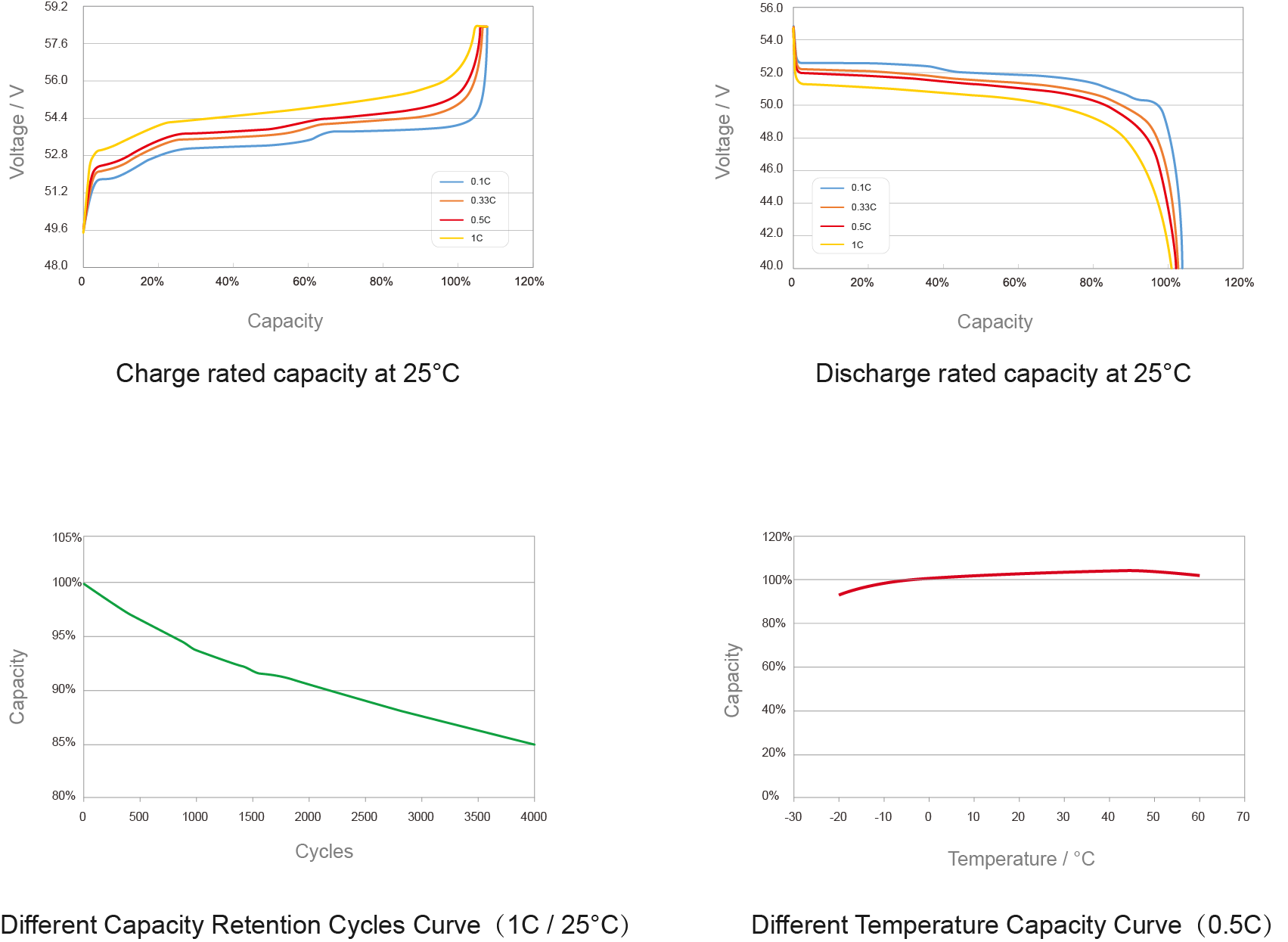

Characteristics Curve:

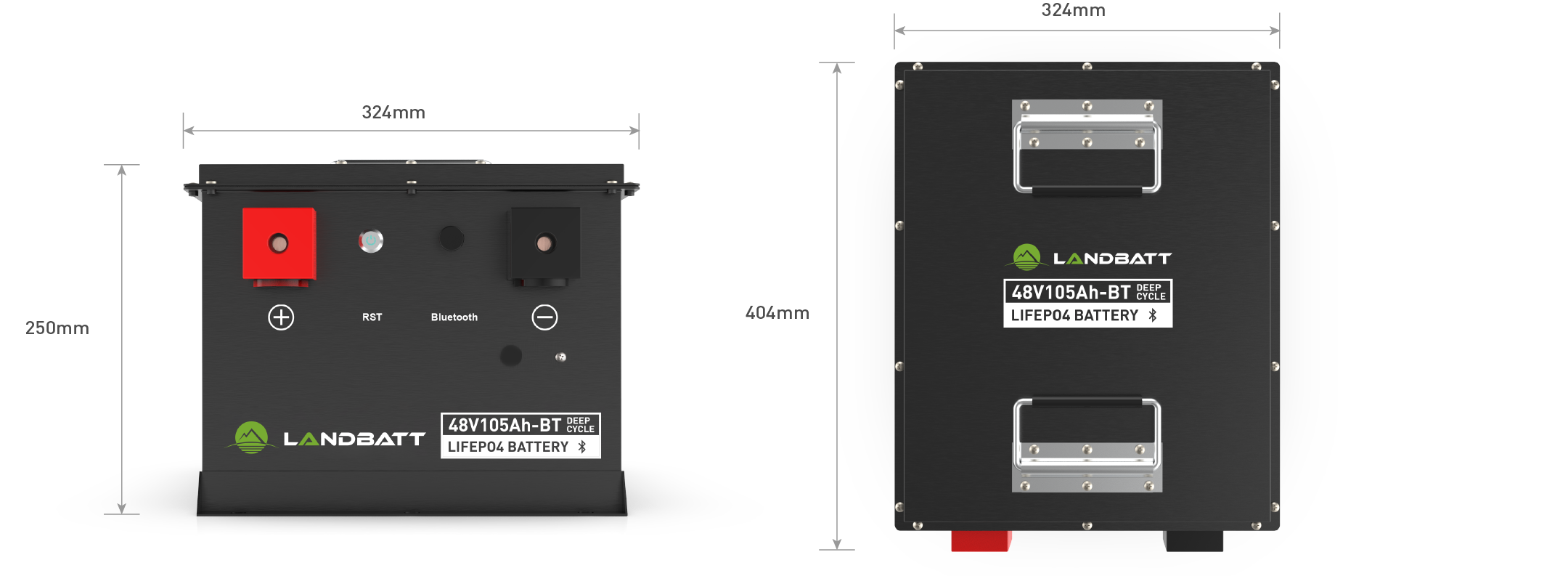

Dimensions
