Model
High Voltage System
205V100Ah Stack Mounted Solid State Battery
Electrical Specifications
Nominal Voltage 204.8V
Nominal Capacity 100Ah
Parallel Connection No
Serial ConnectionNo
BMS 64S100A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication 2×RS485 and 1×CAN; LCD
Cycle Life 5000times Cycles @100%DOD and 10000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 230.4±3.2V
Standard Current 20A
Fast Current 50A
Discharge Specifications
Standard Current 20A
Max. Con. Current 100A
Peak Current 500A (100ms)
Cut-off Voltage 160V
Mechanical Specifications
Dimensions (mm) 550×490×1037mm
Approx Weight(KG) 170
Terminal Type ES07 Energy Storage Quick Insert
Case Color/material White Metal case
IP Rating IP65
Cell Type 3.2V 50Ah solid state cell
Temperature Specifications
Charge Temp 0°C to 55°C （32°F to 131°F）
Discharge Temp -20°C to 60°C （-4°F to 140°F）
Storage Temp -20°C to 45°C （-4°F to 113°F）
Product advantages:
Higher Safety：no fire and no smoke even if penetrated by nails.
Longer Cycle life: over 5000times at 100% DOD and over 10000times at 80% DOD
Better performance at low temperature: over 97% capacity discharged at -20°C.
Lower temperature rising when working, less than 7°C rising at 0.5C.
Modular, Scalable & Proven Performance.
Compatible with most Brands inverters.
Maintenance Free.
Characteristics Curve:

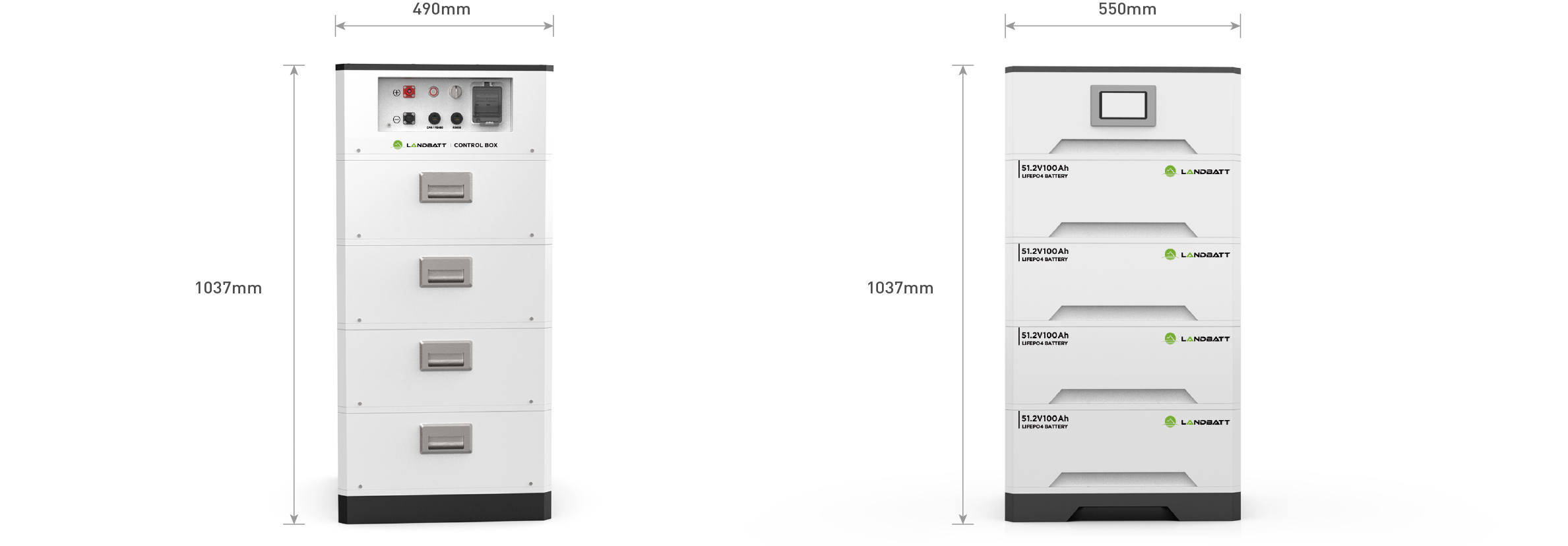

Dimensions
