Model
48V200Ah Wall Mounted Solid State Battery
Electrical Specifications
Nominal Voltage 51.2V
Nominal Capacity 200Ah
Parallel Connection Max. 16units
Serial ConnectionNo
BMS 16S200A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication 2×RS485 and 1×CAN; LCD
Cycle Life 5000times Cycles @100%DOD and 10000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 57.6±0.8V
Standard Current 40A
Fast Current 100A
Discharge Specifications
Standard Current 40A
Max. Con. Current 200A
Peak Current 400A (30ms)
Cut-off Voltage 40V
Mechanical Specifications
Dimensions (mm) 570×840×198mm
Approx Weight(KG) 90
Terminal Type ES07 Energy Storage Quick Insert
Case Color/material White Metal case
IP Rating IP54
Cell Type 3.2V 50Ah solid state cell
Temperature Specifications
Charge Temp 0°C to 55°C （32°F to 131°F）
Discharge Temp -20°C to 60°C （-4°F to 140°F）
Storage Temp -20°C to 45°C （-4°F to 113°F）
Product advantages:
Higher Safety：no fire and no smoke even if penetrated by nails.
Longer Cycle life: over 5000times at 100% DOD and over 10000times at 80% DOD
Better performance at low temperature: over 97% capacity discharged at -20°C.
Lower temperature rising when working, less than 7°C rising at 0.5C.
Max. 16pcs in Parallel to get Max. 172kwh system.
Compatible with most Brands inverters.
Maintenance Free.
Modular, Scalable & Proven Performance.

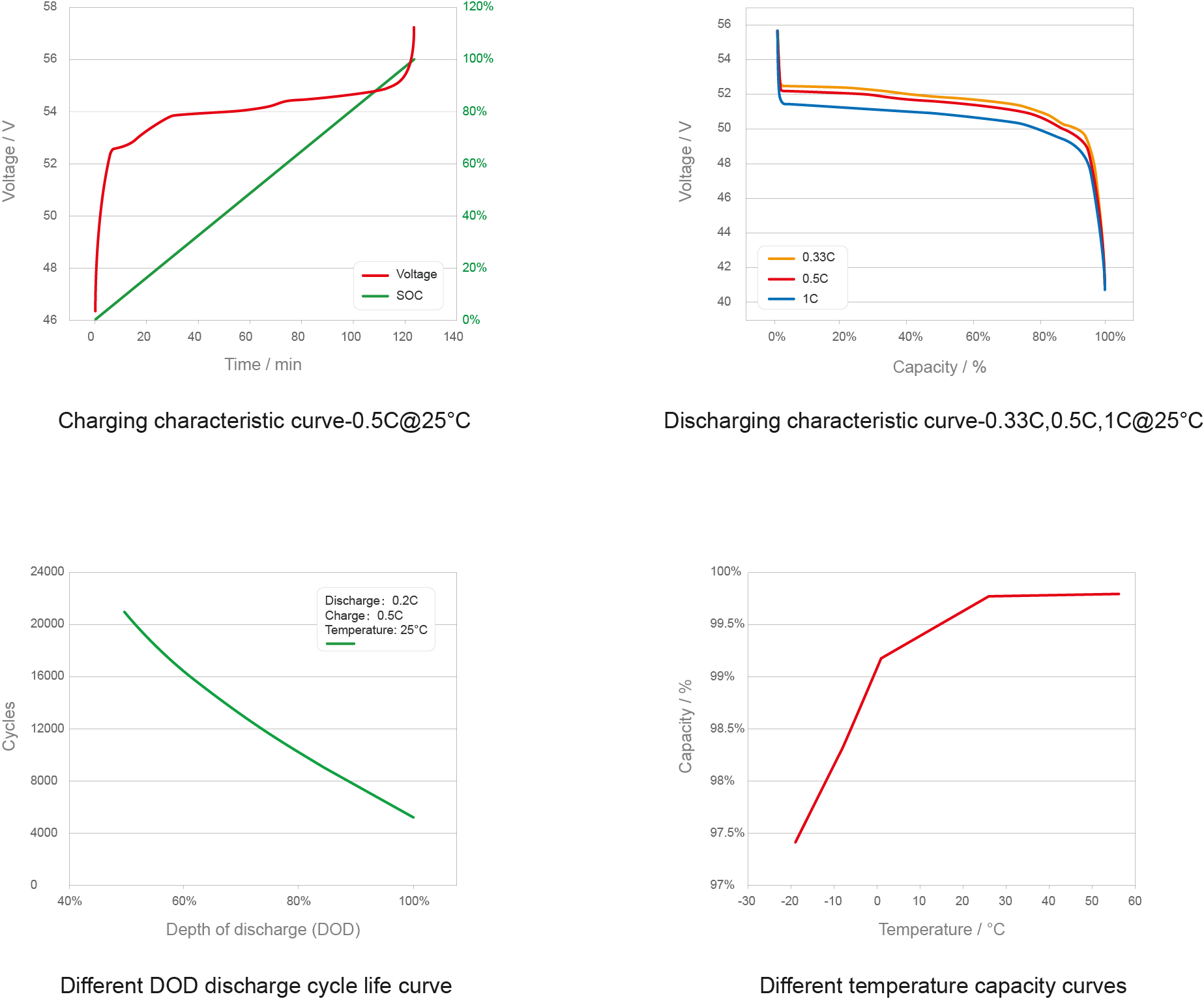

Characteristics Curve:

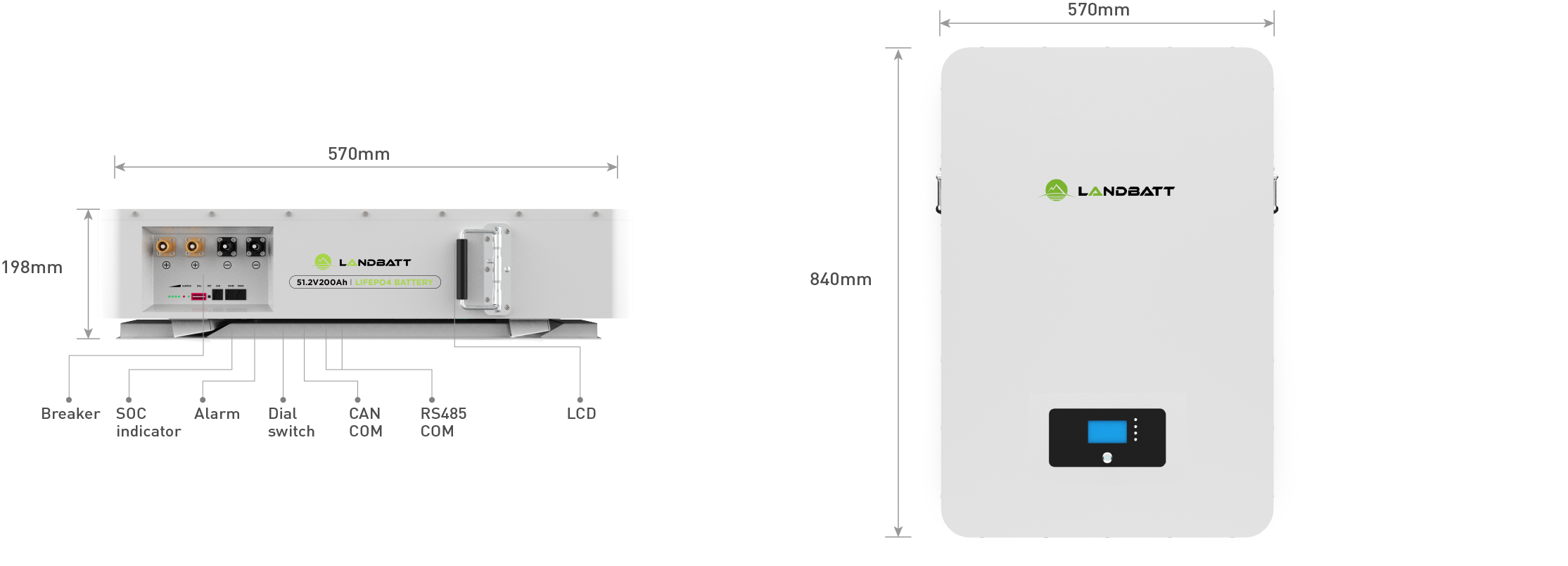

Dimensions
