Model
12V200Ah Sodium-ion Battery
Electrical Specifications
Nominal Voltage 12.4V
Nominal Capacity 100Ah
Parallel Connection Max. 6units
Serial ConnectionMax. 4units
BMS 4S150A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication Bluetooth, Heating, Display, RS485 or CANBus
Cycle Life 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 15.8±0.2V
Standard Current 20A
Fast Current 50A
Discharge Specifications
Standard Current 20A
Max. Con. Current 100A
Peak Current 400A (300ms)
Cut-off Voltage 6V
Mechanical Specifications
Dimensions (mm) 330×173×216mm (Group 31)
Approx Weight(KG) 11.2
Terminal Type M8
Case Color/material Black Plastic case (ABS)
IP Rating IP65
Cell Type Sodium-ion Rechargeable cell
Temperature Specifications
Charge Temp -10°C to 45°C （14°F to 113°F）
Discharge Temp -30°C to 60°C （-22°F to 140°F）
Storage Temp -20°C to 45°C （-4°F to 113°F）
Product advantages:
Better performance at low temperature:
Better low-temperature charging and storage performance, greatly reducing safety hazards.
More stable and firm internal structure:
Cell holders can well protect and separate the cells to avoid any circuit short risk caused by vibration or impact or over current, and improve the heat dissipation.
Stronger BMS:
Can support the batteries in parallel and series connection.
Smaller size and less weight:
The size of our battery is just 3/4 size of the standard 12V 100Ah battery from other suppliers
Characteristics Curve:

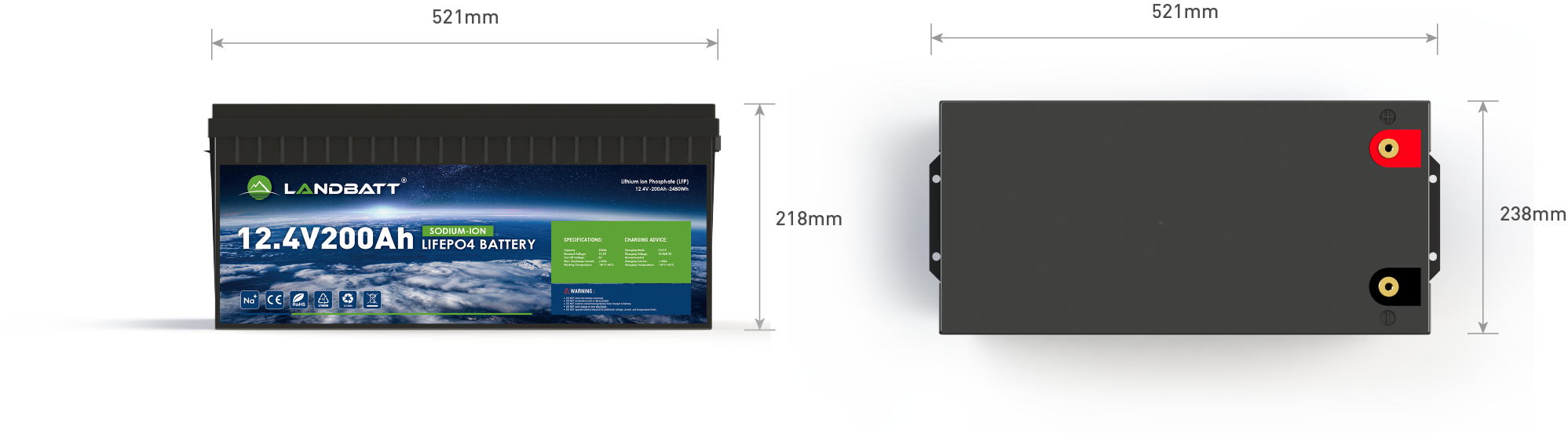

Dimensions
