Model
12.8V100Ah Deep Cycle Lithium Battery
Electrical Specifications
Nominal Voltage 12.8V
Nominal Capacity 100Ah
Parallel Connection Max. 6units
Serial ConnectionMax. 4units
BMS 4S100A
Protection Over charge, Over discharge, Over current, Over temp, Short, Balance
Communication Bluetooth, Heating, Display, RS485 or CANBus
Cycle Life 3000times Cycles @100%DOD and 6000times @80% DOD
Self Discharge Less than 3% per month
Charge Efficiency 100% @0.2C
Discharge Efficiency 98-100% @1C
Charge Specifications
Charge Voltage 14.4±0.2V
Standard Current 20A
Fast Current 50A
Discharge Specifications
Standard Current 20A
Max. Con. Current 100A
Peak Current 500A (300ms)
Cut-off Voltage 10V
Mechanical Specifications
Dimensions (mm) 260×170×208mm (Group 24)
Approx Weight(KG) 10
Terminal Type M8
Case Color/material Black Plastic case (ABS)
IP Rating IP65
Cell Type 3.2V100Ah Prismatic cell
Temperature Specifications
Charge Temp 0°C to 55°C （32°F to 131°F）
Discharge Temp -20°C to 60°C （-4°F to 140°F）
Storage Temp -5°C to 45°C （23°F to 113°F）
Product advantages:
Higher qualified prismatic cell:
UL1973, IEC62619 listed with cycle life over 3500 times and excellent consistency
Cost efficient based on stable quality:
We are the VIP partner of our materials suppliers, that is why we can supply you most competitive and stable pricebased on very good quality with 3 years warranty.
Stronger BMS:
Can support the batteries in parallel and series connection. Bluetooth and heating functions are approved over 5 years.
Smaller size and less weight:
The size of our battery is just 3/4 size of the standard 12V 100Ah battery from other suppliers.
Characteristics Curve:

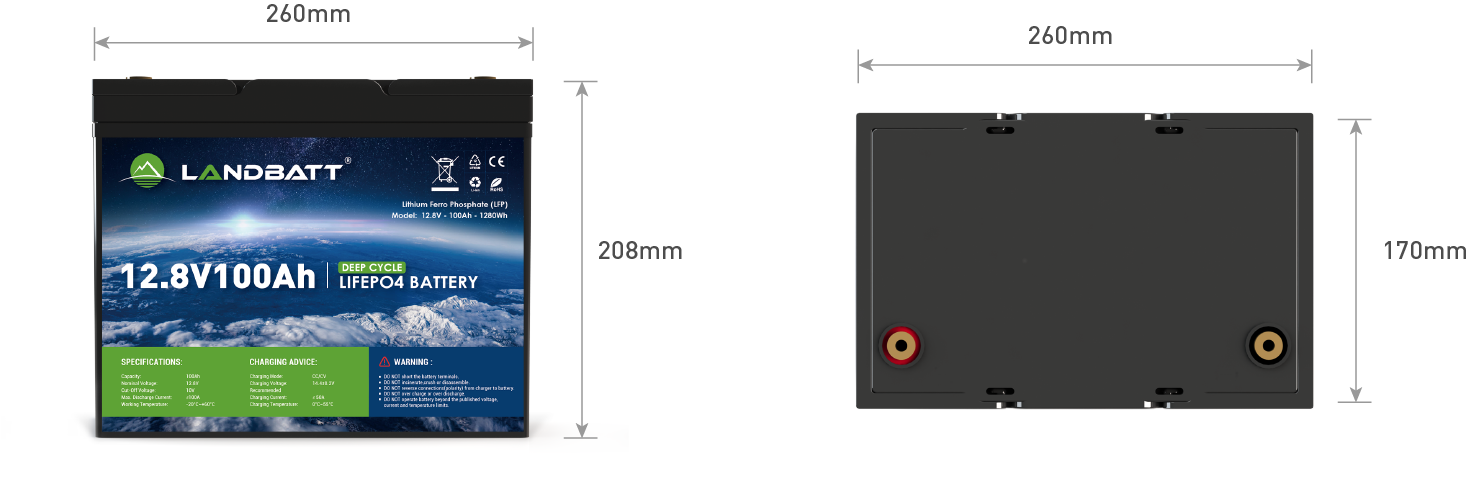

Dimensions
